| Wound
Cartridge: Yarns of polypropelene, Cotton,
Nylon, Glass Fibre is wound in some specific pattern
on a centre core. |
|
| |
Spun
Bonded Cartridge: Fibres of polypropelene
are moulded into a single piece by Meltblown process.
Flow rate is about double of wound cartridge. |
|
| |
|
|
Resin
Bonded Cartridge:Fibres of cellulose/polypropelene
are moulded into a single piece by using Mellamine
resin as bonding agent. |
|
|
|
|
 |

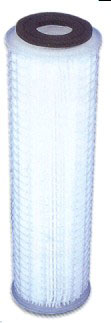

Pleated Cartridge:
Sheets of Cellulose fibre/polypropelene fibre are
pleated to increase the surface area. |
|
|
|
Activated Carbon Cartridge: Granular
activated carbon is packed in sandwitched form. Powdered
activated carbon is in moulded form. Selection
Parameters
Flow rate, Type of Fluid, Viscosity, Operating
temp., Micron rating, M.O.C.
Purpose: To achieve Quality Products, Remove
unwanted particles/materials.
Application: Drinking water, D.M. water,
Breweries, Pharmaceuticals, Metal finishing & Plating,
Magnetic coating, Fine Chemicals, Bulk drug, Oil&
Gas, Lubricants, Edible Oil, Polymer, Resin, Paint, Cosmetics,
Perfumes etc.
Filter Cartridge Nomencalture:
| Type |
M.O.C. |
Max.Temp.0C
[water] |
Micron Rating |
Length Avaliable |
| Core |
Media |
| Wound |
Polypropelene
Or
SS-304,316 |
Polypropelene |
70 |
0.1to 50 |
5''to 40''
|
| Viscous |
110 |
| Cotton |
130 |
| Nylon |
135 |
| Glass Fibre |
400 |
| Spun Bonded |
Moulded |
Polypropelene |
70 |
| Resin Bonded |
Moulded |
Cellulose |
93 |
| Pleated |
Polypropelene |
Polypropelene |
70 |
| Carbon |
Polypropelene |
Powdered Carbon |
50 |
| Granular Carbon |
50 |
|
